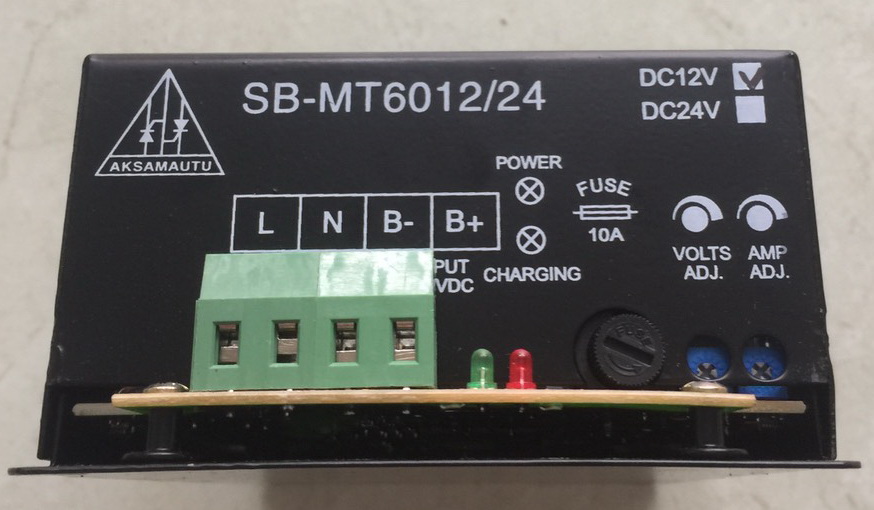

• Sạc bình tự động 6A model SB-MT6012/24
• Mã sản phẩm:
• Giá bán: Liên hệ
• Lượt xem: 17925

• 4    SPECIFICATION



  Category	Items		12V	24V
  Input	Nominal AC Voltage		AC (95～280)V
  	Max. AC Voltage		AC (90～305)V
  	AC Frequency		50Hz/60Hz
  	Max. Input Current		2A
  	Max. Efficiency		85%
  Output	Charging Current		4A～8A,(Error±2%)	2A～8A,(Error±2%)
  	Factory           Charging Current		6A	6A
  	Max. Power		120W
  	Min. Voltage		7.5V
  	No-load Voltage		13.8V, (Error ±1%)	27.6V, (Error ±1%)
  	No-load               power consumption		<3W
  Insulation	Insulation Resistance		Between input and output, input and shell both are: DC500V 1min RL≥500MΩ
  	Insulation Voltage		Between input and output, input and shell both are: AC1500V 50Hz 1min Leakage current: IL≤3.5mA。
  Working Conditions	Working Temperature		(-30～55)°C
  	Storage Temperature		(-40～85)°C
  	Working Humidity		20%RH～93%RH (No condensation)
  Profile	MT6012/24	Weight	0.60kg
  		Dimension	165mm×107mm×60mm (Length*Width*Height)



4    SPECIFICATION
