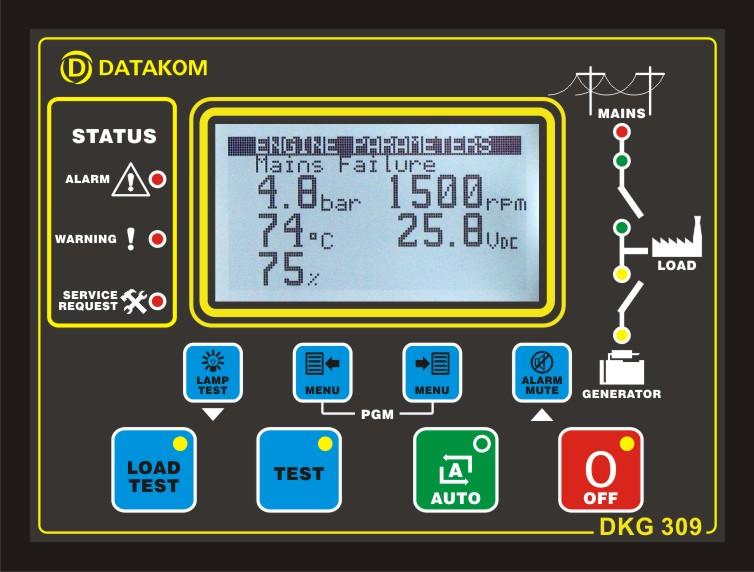

• DGK-309 (DATAKOM)
• Mã sản phẩm:
• Giá bán: Liên hệ
• Lượt xem: 31804

TECHNICAL SPECIFICATIONS
Alternator voltage: 0 to 300 V-AC (Ph-N)
Alternator frequency: 0-100 Hz.
Mains voltage: 0 to 300 V-AC (Ph-N)
Mains frequency: 0-100 Hz.
DC Supply Range:  9.0 to 30.0 V-DC
Cranking dropouts: survives 0 V for 100ms.
Typical Standby Current: 100 mA-DC
Maximum Operating Current: 200 mA-DC (Relay outputs open)
Generator/Mains Contactor Relay Outputs: 16 A / 250V
DC Outputs: 1A @ 28V
Charge excitation current: min 150mA @ 10 to 30 V-DC
Current inputs: from CTs, .../5A. Max load 0.7VA per phase.
Magnetic pickup input:: 1 – 30 Vac.
Magnetic pickup frequency: 10 KHz max.
Analog input range: 0-5000 ohms.
Serial port: RS-232, 2400 bauds, no parity, 1 bit stop
Operating temp.: -20°C (-4°F) to 70 °C (158°F).
Storage temp.:    -40°C (-40°F) to 80 °C (176°F).
Maximum humidity: 95% non-condensing.
Dimensions: 165 x 125 x 48 mm (WxHxD)
Panel Cut-out Dimensions: 151x111 mm minimum.
Weight: 350 g (approx.)
Case Material: High Temperature ABS/PC (UL94-V0)
IP Protection: IP65 from front panel, IP30 from the rear
Conformity (EU directives)
 -2006/95/EC (low voltage)
  -2004/108/EC (electro-magnetic compatibility)
Norms of reference:
 EN 61010  (safety requirements)
 EN 61326  (EMC requirements)
