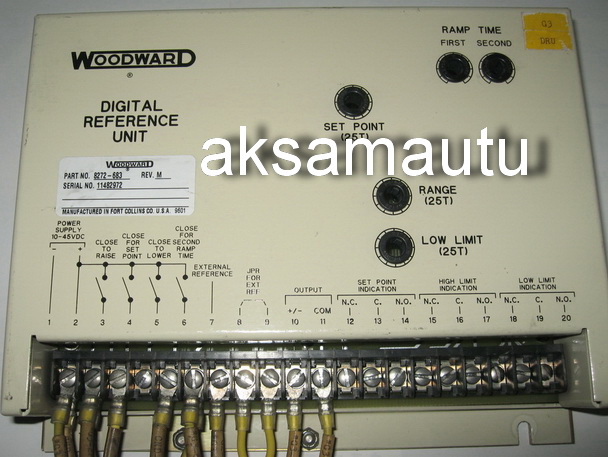

• woodward Digital Reference Unit P/ N 8272-683
• Mã sản phẩm:
• Giá bán: Liên hệ
• Lượt xem: 34842

Digital Reference Unit with High, Low, and Intermediate Set Points
Applications
The Digital Reference
Unit generates a precise
voltage that may be used
wherever a very accurate
reference signal is
required. Typical use
combines the Digital
Reference Unit with other
Woodward controls for
regulation of speed, load,
pressure, or voltage.
Description
Reference Set Points—
The Digital Reference Unit provides electronic control of the reference-signal
voltage. Lower limit, upper limit, and an intermediate set point can be selected.
Ramp Rates—The Digital Reference Unit has two separate and independent ramp
rates (which determine the time required to change from the low limit to the high
limit). Each ramp rate can be set for a ramp rate from a minimum of 5 seconds to a
maximum of 10 minutes.
Location of Adjustments—Rocker switches under the cover allow selection of
ramp rate ranges. All other adjustments are made from potentiometers accessible on
the front of the cover.
Specifications
Construction: The Digital Reference Unit consists of a printed circuit board housed in a steel
chassis and cover.
Power Supply 10–45 Vdc
 90–150 Vdc   88–132 Vac, 45–440 Hz
Signal Output 0–8 Vdc
Ramp Rates:
  Ramp 1  5 seconds to 10 minutes
  Ramp 2 (switch selectable)  5 seconds to 10 minutes
Relay Indications (optional):
 Low Limit  High Limit  Set Point External Reference provided for ramp speed setting on Woodward EPG and 2500 controls.
Temperature  –40 to +85 °C
  –40 to +185 °F
Location: Can be mounted in any position that provides adequate ventilation and room for
servicing. May not be mounted on the engine. Protect from exposure to rain or pressure wash.


PO Box 1519, Fort Collins CO, USA 80522-1519
1000 East Drake Road, Fort Collins CO 80525
Tel.: +1 (970) 482-5811    Fax: +1 (970) 498-3058
www.woodward.com

Distributors & Service
Woodward has an international network of distributors and service facilities.
For your nearest representative, call the Fort Collins plant or see the
Worldwide Directory on our website.

This document is distributed for informational purposes only. It is not to be construed as
creating or becoming part of any Woodward contractual or warranty obligation unless
expressly stated in a written sales contract.
Copyright © Woodward 2000, All Rights Reserved
