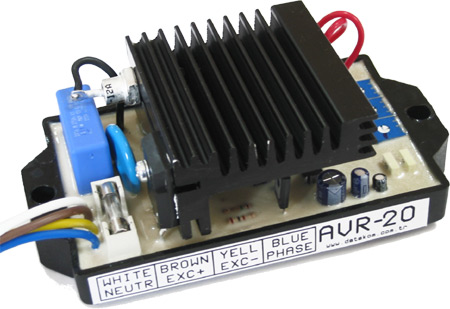

• AVR 20 (DATACOM)
• Mã sản phẩm:
• Giá bán: Liên hệ
• Lượt xem: 30428

Phases: single phase.
Voltage Adjustment Range: 210-250 Volts min
Frequency: 50/60Hz.
Frequency Protection Adj. Range: 40-50Hz
Output Voltage: 0-115 volts-DC at 230volts
Output Current: 20A continuous,
Residual Voltage For Build Up:  5 volts minimum
Regulation: +/- 2% typical.
Power Output Stage: Half Wave tyhristor.
Internal Fusing: 10A (fast acting fuse)
Operating temp.: -10°C (14°F) to 60 °C (140°F).
Storage temp.:    -20°C (-4°F) to 80 °C (176°F).
Maximum humidity: 95% non-condensing.
Dimensions: 125x68x35mm (L x W x H)
Fixing centers: 115mm, 2xM6
Weight: 280grams
