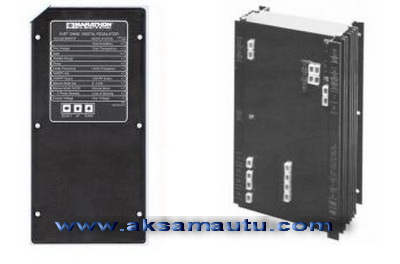

SPECIFICATIONS DVR2000 & DVR2000C Sensing 95-600v, 25-420Hz Sensing Mode RMS (1 or 3 Phase) Input Requirements 180-240v, 250-300Hz Continuous Output 75 Vdc at 3.0 Adc Max Output 1-mm 150 Vdc at 7.5 Adc Hot Field Resistance 18-25 Ohms Regulation 0.25% Response Less than 7 msec Operating Temp. -40°C to +70°C Storage Temperature -40°C to +85°C Size 10.4 L x 5.0 W x 2.8 D (26.4 x 12.7 x 7.l cm) Weight 5.5 Lbs. (2.5 Kg) Fuse Size and Type 25x 1.25 5-amp Littelfuse 314005 or Bussman ABC-5 Accessory Input Not Available
|
