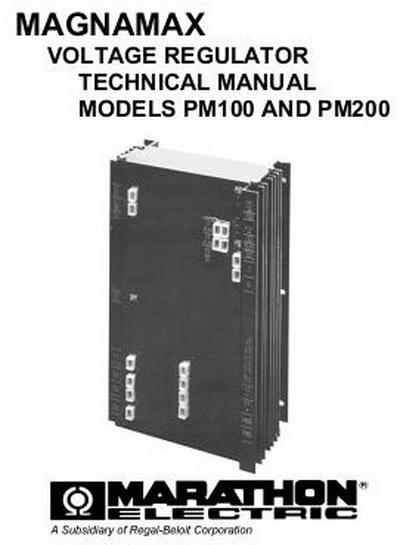

• MAGNAMAX AVR - PM100A
• Mã sản phẩm:
• Giá bán: Liên hệ
• Lượt xem: 30178

SPECIFICATIONS
Sensing 60 Hz 95-600 Vac
50 Hz 95-500 Vac
Sensing Mode RMS (Single or Three Phase)
Input Requirements 300 Hz 180-240 Vac
250 Hz 150-200 Vac
Output Power
       Continuous
       Max Forcing (1-mm.)
75 Vdc at 3.0 Adc
170 Vdc at 7.5 Adc
Nominal Hot Field Resistance 20-26 ohms
Regulation .5%
Regulator Response Less than 10 milliseconds
Remote Voltage Adjust Current Less than 10 milliamps
Operating Ambient Temperature -40° C to +70° C
Storage Temperature -40° C to +85° C
Size 9.5L x 6.0W x 3.2H (24.1 cm x 15.2 cm x  8.13 cm)
Weight 5.5 Lbs.     (2.5 Kg)
Fuse Size and Type 25 x 1.25 5-amp
Littelfuse 314005 or
Bussman ABC-S
Power Dissipation 12 watts (continuous)
22 watts (forcing)
