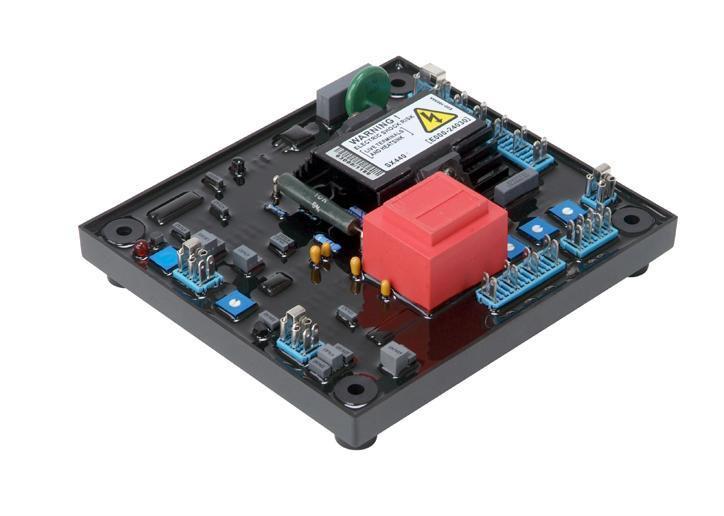

• AVR-STAMFORD SX440
• Mã sản phẩm:
• Giá bán: Liên hệ
• Lượt xem: 28106

Technical specification
INPUT
 Voltage 190-264V ac
 Frequency 50-60 Hz nominal
 Phase 1
 Wire 2
OUTPUT
 Voltage max 90V dc at 207V ac input
 Current continuous 4A dc
  Intermittent 6A for 10 secs
 Resistance 15 ohms minimum
REGULATION
  +/- 1% (see note 1)

THERMAL DRIFT
 0.04% per deg. C change in AVR ambient (note 2

TYPICAL SYSTEM RESPONSE
  AVR response  20ms
  Filed current to 90% 80 ms
 Machine Volts to 97% 300ms

EXTERNAL VOLTAGE ADJUSTMENT
  +/-10% with 1 k ohm 1 watt trimmer (see note 3)

UNDER FREQUENCY PROTECTION
  Set point 95% Hz (see note 4)
 Slope 170% down to 30 Hz

UNIT POWER DISSIPATION
  12 watts maximum
BUILD UP VOLTAGE
  4 Volts @ AVR terminals
ANALOGUE INPUT
  Maximum input  +/- 5V dc (see note 5)
 Sensitivity     1v for 5% Generator Volts (adjustable)
 Input resistance  1k ohm
QUADRATURE DROOP INPUT
 10 ohms burden
 Max. sensitivity: 0.07 A for 5% droop 0PF
 Max. input:  0.33A
ENVIRONMENTAL
  Vibration 20-100 Hz 50mm/sec
  100Hz – 2kHz 3.3g
 Operating temperature -40 to +70 o
C
 Relative Humidity 0-70 o
C  95% (see note 6)
 Storage temperature -55 to +80 o
C
