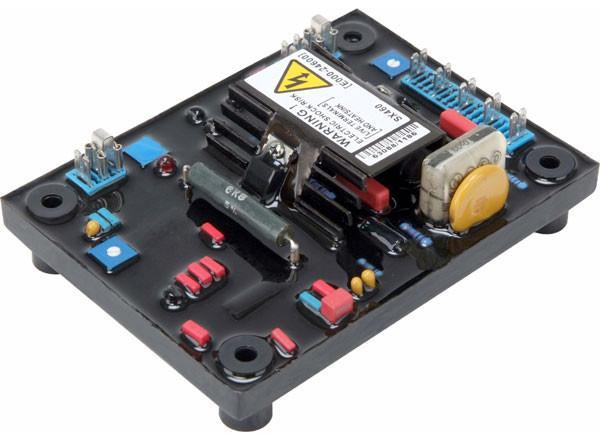

• AVR-SX460
• Mã sản phẩm:
• Giá bán: Liên hệ
• Lượt xem: 31847

Technical specification
INPUT
 Voltage Jumper selectable
  95-132V ac or
  190-264V ac
 Frequency 50-60 Hz nominal
 Phase 1

OUTPUT
 Voltage max 90V dc at 207V ac input
 Current continuous 4 A dc
  Intermittent 6 A for 10 secs
 Resistance 15 ohms minimum

REGULATION
  +/- 1.5% (see note 1)

THERMAL DRIFT
  0.05% per deg. C change in AVR ambient (note

TYPICAL SYSTEM RESPONSE
 AVR response   20 ms
  Filed current to 90%  80 ms
 Machine VEXTERNAL VOLTAGE ADJUSTMENT
  +/-10% with 1 k ohm 1 watt trimmer (see note 3)

UNDER FREQUENCY PROTECTION
  Set point 95% Hz (see note 4)
 Slope 170% down to 30 Hz

UNIT POWER DISSIPATION
  10 watts maximum

BUILD UP VOLTAGE
  4 Volts @ AVR terminals

ENVIRONMENTAL
  Vibration 20-100 Hz 50mm/sec
  100Hz – 2kHz 3.3g
 Operating temperature -40 to +70°C
 Relative Humidity 0-70°C  95% (see note 5)
 Storage temperature -55 to +80°C
 olts to 97% 300 ms
