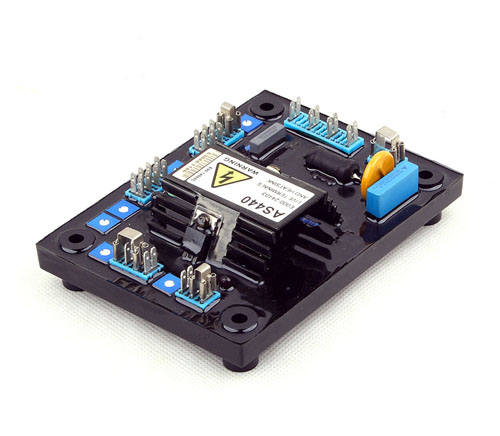

• Stamford_AVR_AS440
• Mã sản phẩm:
• Giá bán: Liên hệ
• Lượt xem: 30344

Technical specification
SENSING INPUT
 Voltage Jumper selectable
  100-130 Vac 1 phase or
  190-264 Vac 1 phase
 Frequency 50-60 Hz nominal
POWER INPUT
  Voltage 100-264 V ac 1 phase
 Frequency 50-60 Hz nominal
OUTPUT
 Voltage 82 V d.c. @ 200 V a.c.
 Current continuous 4A (see note 1).
  transient 7.5A for 10 secs.
 Resistance    15 ohms min
  (10 ohms min when input
  volts is less than 175 ac)
REGULATION
  +/- 1.0% (see note 2)
THERMAL DRIFT
 0.03% per deg. C change in AVR ambient (see note 3)
TYPICAL SYSTEM RESPONSE
  AVR response  20 ms
  Filed current to 90% 80 ms
 Machine Volts to 97% 300 ms
EXTERNAL VOLTAGE ADJUSTMENT
  +/-10% with 1 k ohm 1 watt trimmer (see note 4)
 Increasing resistance lowers voltage.
UNDER FREQUENCY PROTECTION
  Set point 94 -98% Hz (see note 5)
UNIT POWER DISSIPATION
  12 watts maximum
BUILD UP VOLTAGE
  4 Volts @ AVR terminals
ANALOGUE INPUT
  Maximum input  +/- 5 Vdc (see note 6)
 Sensitivity 1V for 5% Generator Volts (adjustable)
 Input resistance  1k ohm
QUADRATURE DROOP INPUT
 10 ohms burden
 Max. sensitivity: 0.07 A for 5% droop 0PF
 Max. input:  0.33 A
OVER EXCITATION PROTECTION
  Set point 65 V dc
 Time delay 10-15 seconds (fixed)
ENVIRONMENTAL
  Vibration 20-100 Hz 50mm/sec
  100Hz – 2kHz 3.3g
 Operating temperature -40 to +70C (note 7)
 Relative Humidity 0-70C 95% (note 8)
 Storage temperature -55 to +80C
