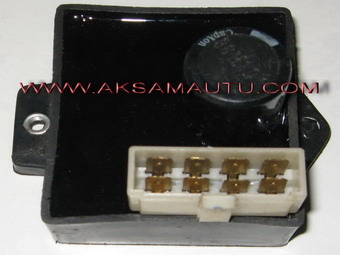

• AVR-HONDA EZ
• Mã sản phẩm:
• Giá bán: Liên hệ
• Lượt xem: 2542

Features:
< 2% Regulation;
For Use In 50/60Hz Generator;
Adjustable Output Voltage;
Single Phase Voltage Sensing;
Economical Compact Design;
Compatible With Many Different Models By Adapter Plug.

Specifications:
Sensing Input Voltage 16~22VAC 1 Phase 2 Wire;
Power Input Voltage 60~100VAC 1 Phase 2 Wire;
Excitation Output Voltage 5~85VAC, Current Continuous 3A, Intermittent 4A For 60 Sec, Resistance Min 25Ω ;
Voltage Regulation < 2%(Within 4% Engine Goveming)
Voltage Build Up Residual Volts At AVR Terminal >1VAC
Voltage Adjust Range 110/220VAC(-15%~+15%)
Thermal Drift 0.05%Per temperature Change In AVR Ambient

Environment:
Vibration 1.5G@5~30Hz 5.0G@30~500Hz
Relative Humidity < 95%
Operating Temperature -40~+60 temperature
Storage Temperature -40~+85 temperature
