SPECIFICATION

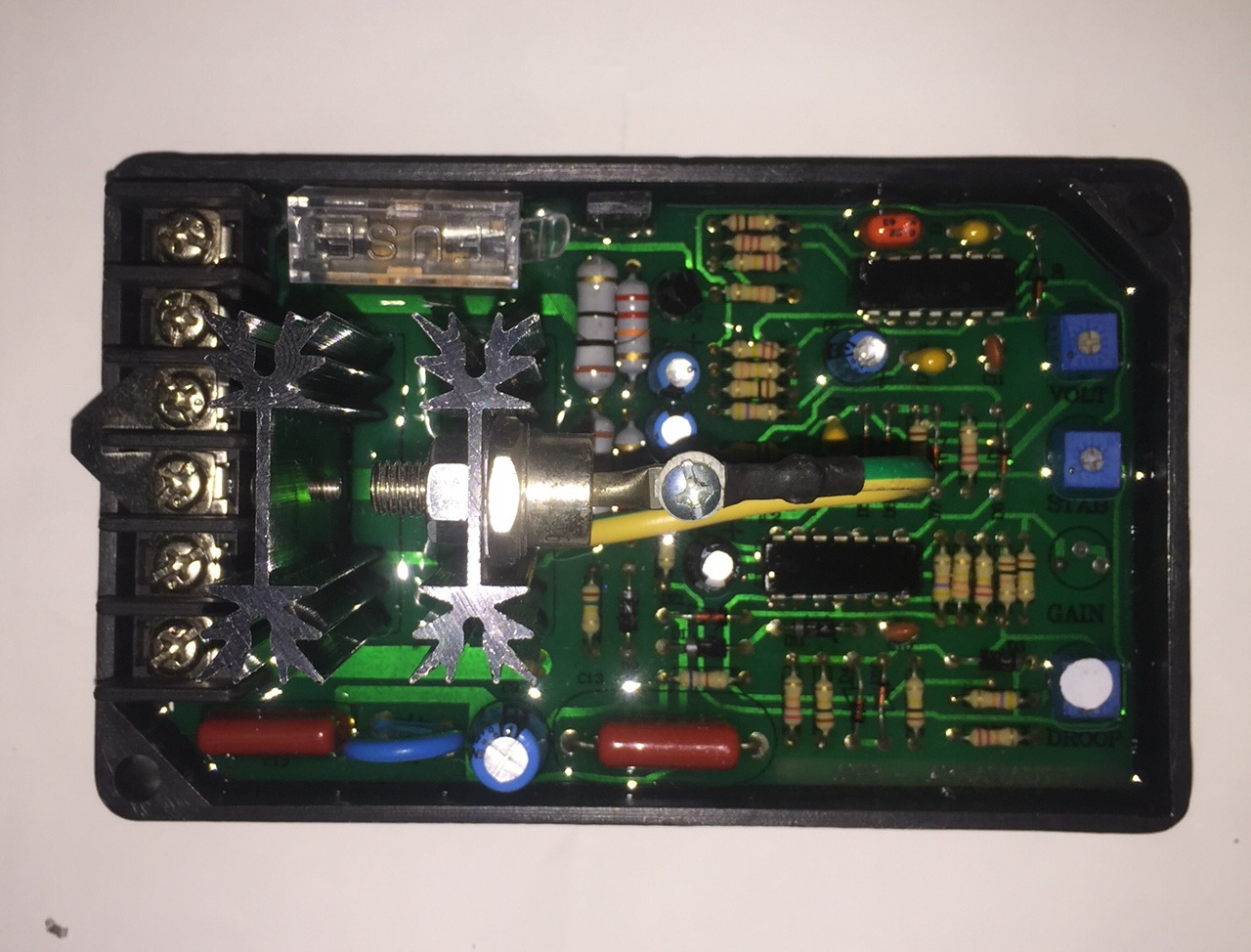

AVR-MT702

Sensing & Power

 Input190-240 Vac

Output Power- Continuous

75 Vdc at 20 Adc

Output Power - Forcing(240 Vac Input Power)

105 Vdc at 25 Adc

Regulation

1 .0%

Remote Voltage Adjustment Range

± 10% with 2000 ohm rheostat

±   5% with l000 ohm rheostat

Frequency Compensation

Adjustable

Roll off frequency54

54-61 Hz for 60 Hz

45-51 Hz for 50 Hz

Operation

Weight : 250gam

Operating Temperature

- 40°C to + 60°C

Storage Temperature

- 65°C to + 85°C

Power Dissipation

 watts maximum

Size

W: 125mm, H: 73mm, D: 40mm

Voltage Buildup

dupInternal provisions forautomatic voltage build up from generator residual voltage as

low as 10 Vac
